Stripping Ratios

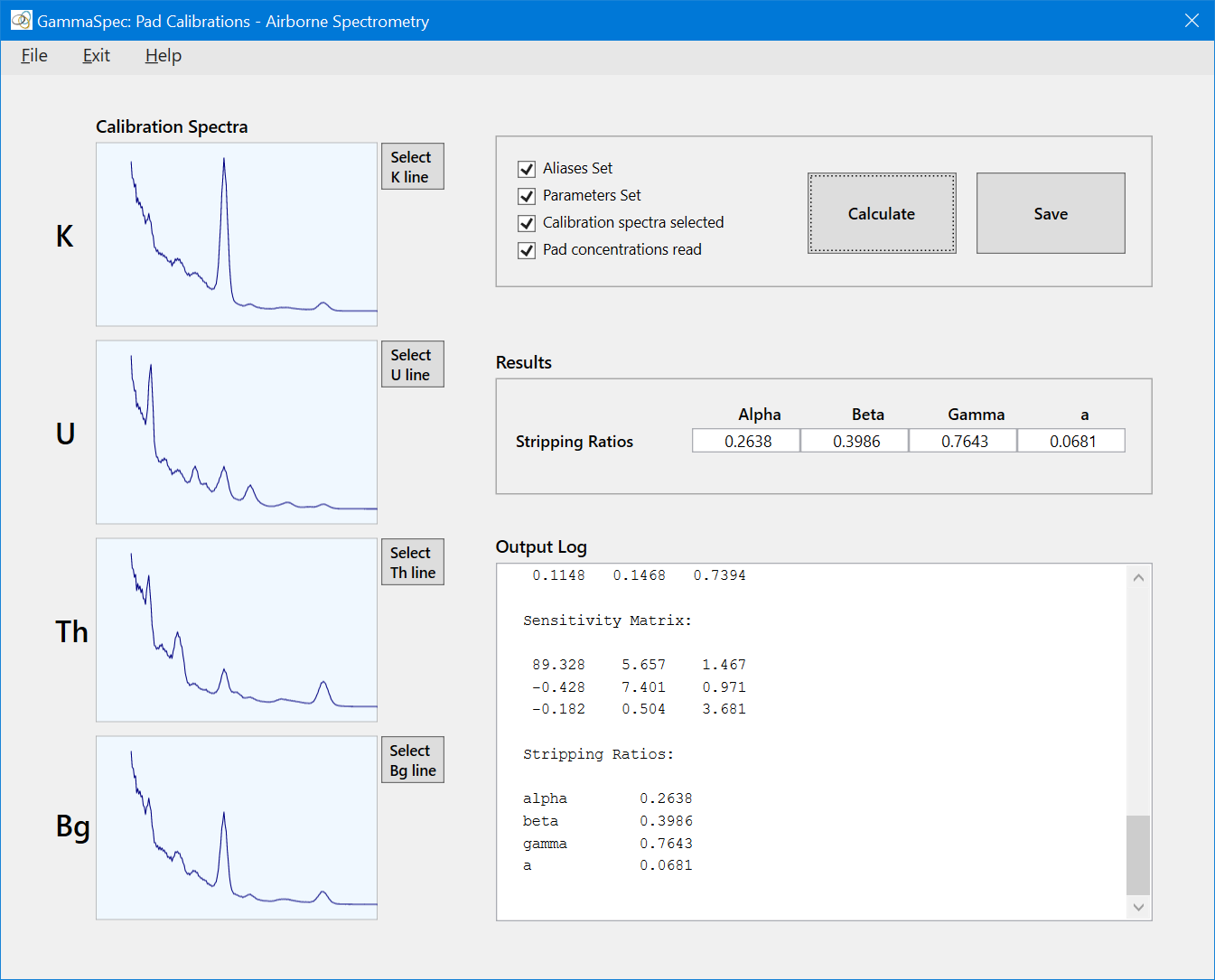

The Stripping Ratios (Pad Calibration) tool processes data acquired over four concrete calibration pads to estimate stripping ratios:

• Load the aliases and parameters for the process from a program control file – File|Set Aliases And Parameters;
• Use the Select buttons to select the spectra lines acquired over the K, U, Th and background pads. The spectra shown in the charts are the average spectrum for each line;
• Read the pad concentrations from a pad concentration file – File|Read Pad Concentrations File. An example pad concentrations file can be found in the demonstration data folder "demo_data\airborne_spectrometry\stripping_ratios".
• Click Calculate to run the tool once all the inputs are set as indicated by the checkBoxes.
• View the log file – File|View User Log File to see the results.

Quick Link: Descriptions of the aliases and parameters used by this tool can be found in the pad calibration control file.

See Tutorial 3: Stripping Ratios Calibration for a tutorial on the use of this tool.
